Products & Technical Datasheets | Everon Energy Systems Pvt. Ltd.

Headline: Reliable DC Power for Critical Applications

Input Voltage Range	Wide Window: 20V DC to 300V DC (Standard models available for 24V, 48V, 110V, 220V nominal inputs)
Output Voltage Options	Regulated 12V DC, 24V DC, or 48V DC (Customer Specified / Settable)
Conversion Efficiency	Up to 90% at full rated load
Line & Load Regulation	Line Regulation: < ±0.5% \| Load Regulation: < ±1.0%
Ripple & Noise	< 50mV RMS (20 MHz Bandwidth)
Electrical Isolation	1.5 kV AC Galvanic Isolation between Input, Output, and Chassis
Built-in Protections	Over-Voltage, Under-Voltage, Output Overload / Short Circuit (Self-Recovery), Reverse Polarity, Thermal Shutdown
Enclosure & Construction	Rugged powder coated CRCA sheet metal chassis with IP20 / IP31 industrial rating
Target Applications	Telecom & Datacom BTS Equipment, Solar Street Lighting, CCTV & Security Survelliance, Industrial SCADA Automation

Headline: Smart Monitoring & Communication for UPS and Power Equipment

Network Interface	10/100 Base-T Auto-negotiating RJ-45 Ethernet Port with MDI/MDIX
IP Protocol Support	Dual Stack IPv4 & IPv6 Compliant
Supported Protocols	SNMP v1, SNMP v2c, SNMP v3 (USM Security, MD5/SHA, DES/AES encryption), HTTP, HTTPS, SNTP, SMTP, Telnet
Alert Dispatch	Real-time Email Alerts (TLS/SSL encryption), SNMP Traps to up to 8 Trap Managers, Syslog
Sensor Integration	External Environmental Port supporting Temperature Sensor (-20°C to +80°C) and Relative Humidity (0-95%)
System Management	Embedded Web Server UI (Mobile Responsive) + CLI Telnet/Serial Terminal
Origin & Manufacturing	100% Designed, Engineered, and Manufactured in India (Atmanirbhar Bharat)
Compatible Systems	Everon UPS Systems, Third-Party Inverters, DC Power Plants, Solar Microgrid Controllers, Server Data Centers

Headline: Solar Charging and Coordinated Energy Management

System Operating Mode	Dedicated Solution for DC Operation with Solar Priority Logic
Charger Topologies	Built-in High Efficiency MPPT Solar Charger + AC Mains Auxiliary Charger
PV Input Voltage Range	Up to 70V Max Open Circuit Voltage (Voc)
Battery Nominal Voltage	12V DC / 24V DC Auto-Detection or User Settable
MPPT Functionality	Micro-Controlled High-Speed MPPT algorithm with continuous tracking
User Interface	Status LED indicators (Solar, Mains, Charging, Fault) + Optional 16x2 Alphanumeric Backlit LCD Display
Energy Management	Automatically prioritizes solar harvesting; supplements with mains charging only during low solar availability
Applications	Off-grid telecom stations, rural hybrid solar DC power banks, remote security surveillance

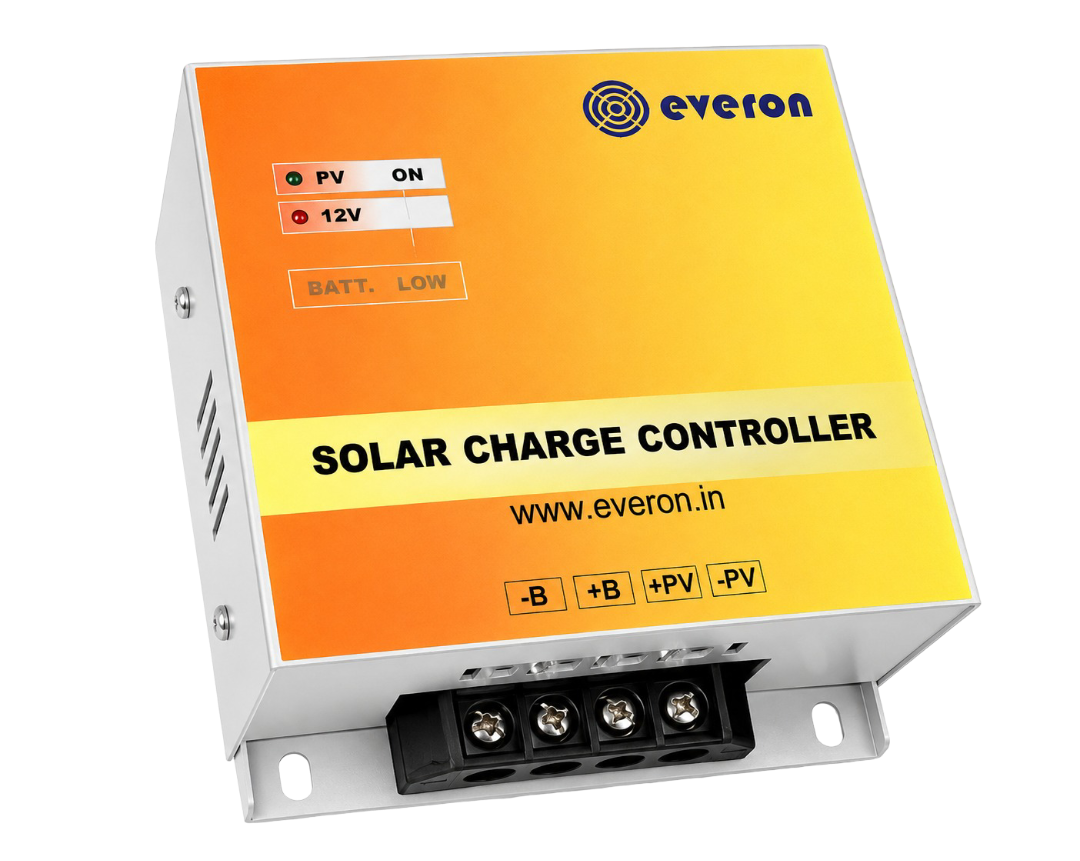

Headline: Low Cost PWM Solar Charger 12V / 15A

Nominal System Voltage	12V DC
Max Solar Charging Current	15 Amperes Continuous
Charge Regulation	High-Efficiency Multi-Stage PWM (Bulk, Absorption, Float)
Battery Low Cutoff (LVD)	11.0V DC (Preserves battery from deep-discharge damage)
Reconnection Voltage (LVR)	12.5V DC Auto Reconnection
Float Charge Voltage	13.8V DC (Temperature Compensated)
Electronic Protections	Solar Panel Reverse Polarity, Battery Reverse Polarity, Load Short Circuit, Over-Current Protection
Visual Status Indication	Multi-color LED: Solar Charging, Battery Low, Battery Fully Charged, Load Active
Applications	Home Lighting Systems, Small Telecom & Datacom Stations, CCTV Remote Posts

Headline: Clean Energy, Smarter Control, A Brighter Tomorrow

MPPT Tracking Efficiency	> 99% (Rapid response under rapidly changing cloud conditions)
Peak Conversion Efficiency	Up to 95%
User Programmability	Field-programmable voltage thresholds, charging rates, and load timers via front panel keypad
Cloud & Wireless Options	Optional Integrated 4G LTE Wireless Module for cloud telemetry and central dashboard monitoring
Mobile Application	Android App Compatibility via Bluetooth / Wi-Fi / Cloud
Battery Chemistry Support	Universal compatibility: Lead-Acid (Flooded, GEL, AGM), Lithium Iron Phosphate (LiFePO4), Lithium-ion NMC
Display & Telemetry	High-contrast graphic LCD display showing PV Watts, Volts, Amps, Daily Harvest kWh, Battery SOC%
Enclosure	Heavy-duty IP21/IP54 extruded aluminum heatsink and powder-coated steel housing
